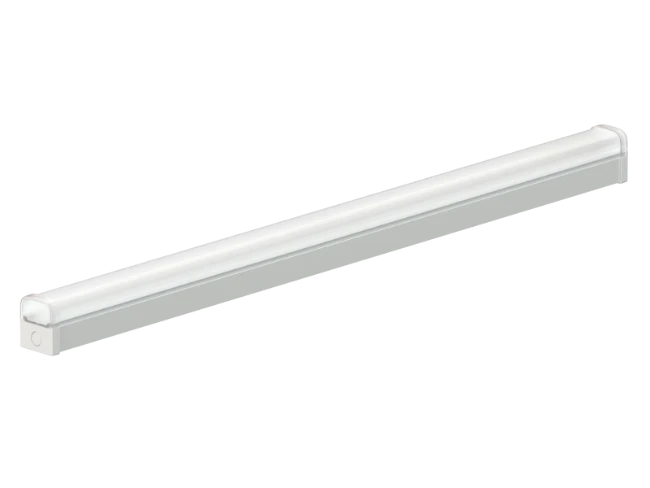

Batten EcoMax

  • NEW: Suspension kit accessory available
  • Comfortable and easy mounting batten family
  • High Efficacy up to 150lm/W
  • Integrated CCT switch for color selection (3000K-4000K)
  • 3 power settings in each version (L12: 19W/28W/38W, L15: 24W/35W/48W)
  • EM1 and DALI are available for the family
  • Central or side power connection
  • DALI2 driver compatible with 230V push dimming


Batten EcoMax 1128mm-38W-2850/5700lm-3/4000K

Product Code
531000019900
Plastic
3000|4000 K
White RAL9003
5700 lm
150 lm/W
TL 1/2x36W


Batten EcoMax 1410mm-48W-3600/7200lm-3/4000K

Product Code
531000020000
Plastic
3000|4000 K
White RAL9003
7200 lm
150 lm/W
TL 1/2x58W


Batten EcoMax 1128mm-38W-2850/5700lm-3/4000K-DALI

Product Code
531000020300
Plastic
3000|4000 K
White RAL9003
5700 lm
150 lm/W
TL 1/2x36W


Batten EcoMax 1410mm-48W-3600/7200lm-3/4000K-DALI

Product Code
531000020500
Plastic
3000|4000 K
White RAL9003
7200 lm
150 lm/W
TL 1/2x58W


Batten EcoMax 1128mm-38W-2850/5700lm-3/4000K-Emergency 1h

Product Code
531000020100
Plastic
3000|4000 K
White RAL9003
5700 lm
150 lm/W
TL 1/2x36W


Batten EcoMax 1410mm-48W-3600/7200lm-3/4000K-Emergency 1h

Product Code
531000020200
Plastic
3000|4000 K
White RAL9003
7200 lm
150 lm/W
TL 1/2x58W


Batten EcoMax 1128mm-38W-2850/5700lm-3/4000K-DALI-Emergency 1h

Product Code
531000020400
Plastic
3000|4000 K
White RAL9003
5700 lm
150 lm/W
TL 1/2x36W


Batten EcoMax 1410mm-48W-3600/7200lm-3/4000K-DALI-Emergency 1h

Product Code
531000020600
Plastic
3000|4000 K
White RAL9003
7200 lm
150 lm/W
TL 1/2x58W
No products found for filters
Filter products


Accessory Waterproof Batten - Suspension kit

Product Code
531098005400
Suspension cable
